INTERIØR VG3: 2010

fredag 10. desember 2010

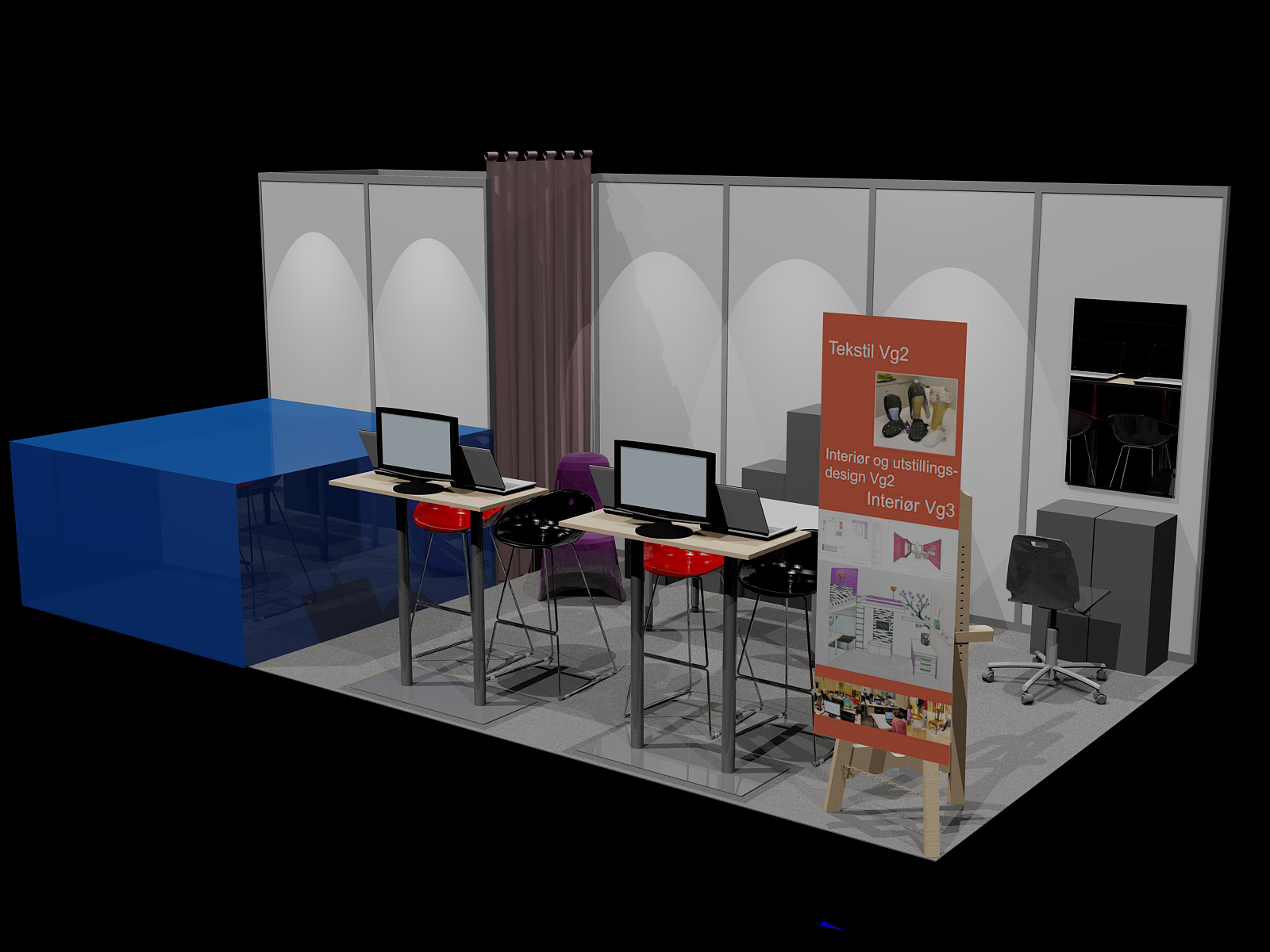

Det går fremover i klassen om dagen. Her er et eksempel på en autocad-rendering. Det viser et "foto" av klassens forslag til innredning av stand til utdanningsmessa i januar 2011. Autocad 3d arbeidet er utført av Nikolai Kaas

mandag 1. november 2010

Test av Live Writer

Dette er en test av redigeringsvrektøy for Interiørbloggen vår.

Håper at dette verktøyet fungerer bra!

fredag 10. september 2010

Tastatur snarveier i Autocad

Kjære elever!

Her er en liste over tastatur snarveier lang som et vondt år!
Markerte kommandoer har vi jobbet med!

ALT+F8 VBA Run
ALT+F11 VBA Editor

CTRL+1 Properties Palette
CTRL+2 DesignCenter Palette
CTRL+3 Tool Palette
CTRL+4 Sheet Set Manager Palette
CTRL+5 Info Palette
CTRL+6 DBConnect Manager
CTRL+7 Markup Set Manager Palette
CTRL+A Selects objects in drawing CTRL+B Toggles Snap CTRL+C Copies objects to Clipboard CTRL+SHFT+C Copies objects to Clipboard with Base Point
CTRL+D Toggles coordinate display
CTRL+E Cycles through isometric planes
CTRL+F Toggles running object snaps
CTRL+G Toggles Grid
CTRL+H Toggles PICKSTYLE on/off
CTRL+J Executes last command
CTRL+K Hyperlink
CTRL+L Toggles Ortho mode
CTRL+M (No action)
CTRL+N Creates a new drawing CTRL+O Opens existing drawing CTRL+P Prints current drawing CTRL+Q Exit
CTRL+R Cycles layout viewports
CTRL+S Saves current drawing
CTRL+SHFT+S Saveas
CTRL+T Toggles Tablet mode
CTRL+V Pastes data from Clipboard
CTRL+SHFT+V Pastes data from Clipboard as Block
CTRL+X Cuts objects to Clipboard
CTRL+Y Repeats last action
CTRL+Z Reverses last action
CTRL+[ Cancels current command
CTRL+ Cancels current command

F1 Displays Help
F2 Toggles text window on/off
F3 Toggles OSNAP
F4 Toggles TABMODE
F5 Toggles ISOPLANE
F6 Toggles COORDS
F7 Toggles GRIDMODE
F8 Toggles ORTHO MODE
F9 Toggles SNAP MODE
F10 Toggles POLAR
F11 Toggles OTRACK

3A 3DARRAY
3DO 3DORBIT
3DW 3DWALK
3F 3DFACE
3M 3DMOVE
3P 3DPOLY
3R 3DROTATE
A ARC
AC BACTION
ADC ADCENTER
AA AREA
AL ALIGN
3AL 3DALIGN
AP APPLOAD
AR ARRAY
-AR -ARRAY
ATI ATTIPEDIT
ATT ATTDEF
-ATT -ATTDEF
ATE ATTEDIT
-ATE -ATTEDIT
ATTE -ATTEDIT
B BLOCK
-B -BLOCK
BC BCLOSE
BE BEDIT
BH HATCH
BO BOUNDARY
-BO -BOUNDARY
BR BREAK
BS BSAVE
BVS BVSTATE
C CIRCLE
CAM CAMERA
CH PROPERTIES
-CH CHANGE
CHA CHAMFER
CHK CHECKSTANDARDS
CLI COMMANDLINE
COL COLOR
CO COPY
CP COPY
CT CTABLESTYLE
CYL CYLINDER
D DIMSTYLE
DAL DIMALIGNED
DAN DIMANGULAR
DAR DIMARC
JOG DIMJOGGED
DBA DIMBASELINE
DBC DBCONNECT
DC ADCENTER
DCE DIMCENTER
DCO DIMCONTINUE
DDA DIMDISASSOCIATE
DDI DIMDIAMETER
DED DIMEDIT
DI DIST
DIV DIVIDE
DJL DIMJOGLINE
DJO DIMJOGGED
DL DATALINK
DLI DIMLINEAR
DLU DATALINKUPDATE
DO DONUT
DOR DIMORDINATE
DOV DIMOVERRIDE
DR DRAWORDER
DRA DIMRADIUS
DRE DIMREASSOCIATE
DRM DRAWINGRECOVERY
DS DSETTINGS
DST DIMSTYLE
DT TEXT
DV DVIEW
DX DATAEXTRACTION
E ERASE
ED DDEDIT
EL ELLIPSE
ER EXTERNALREFERENCES
EX EXTEND
EXIT QUIT
EXP EXPORT
EXT EXTRUDE
F FILLET
FI FILTER
G GROUP
-G -GROUP
GD GRADIENT
GR DDGRIPS
H HATCH
-H -HATCH
HE HATCHEDIT
HI HIDE
I INSERT
-I -INSERT
IAD IMAGEADJUST
IAT IMAGEATTACH
ICL IMAGECLIP
IM IMAGE
-IM -IMAGE
IMP IMPORT
IN INTERSECT
INF INTERFERE
IO INSERTOBJ
J JOIN L LINE LA LAYER
-LA -LAYER
LAS LAYERSTATE
LE QLEADER
LEN LENGTHEN
LI LIST
LO -LAYOUT
LS LIST
LT LINETYPE
-LT -LINETYPE
LTS LTSCALE
LW LWEIGHT
M MOVE
MA MATCHPROP
MAT MATERIALS
ME MEASURE
MI MIRROR
ML MLINE
MLA MLEADERALIGN
MLC MLEADERCOLLECT
MLD MLEADER
MLE MLEADEREDIT
MLS MLEADERSTYLE
MO PROPERTIES
MS MSPACE
MSM MARKUP
MT MTEXT
MV MVIEW
O OFFSET
OP OPTIONS
ORBIT 3DORBIT
OS OSNAP
-OS -OSNAP
P PAN
-P -PAN
PA PASTESPEC
PE PEDIT PL PLINE
PO POINT
POL POLYGON
PR PROPERTIES
PROPS PROPERTIES
PRE PREVIEW
PRINT PLOT
PS PSPACE
PSOLID POLYSOLID
PTW PUBLISHTOWEB
PU PURGE
-PU -PURGE
PYR PYRAMID
QC QUICKCALC
QCUI QUICKCUI
R REDRAW
RA REDRAWALL
RC RENDERCROP
RE REGEN
REA REGENALL
REC RECTANG
REG REGION
REN RENAME
-REN -RENAME
REV REVOLVE
RO ROTATE
RP RENDERPRESETS
RPR RPREF
RR RENDER
RW RENDERWIN
S STRETCH
SC SCALE
SCR SCRIPT
SE DSETTINGS
SEC SECTION
SET SETVAR
SHA SHADEMODE
SL SLICE
SN SNAP
SO SOLID
SP SPELL
SPL SPLINE
SPLANE SECTIONPLANE
SPE SPLINEDIT
SSM SHEETSET
ST STYLE
STA STANDARDS
SU SUBTRACT
T MTEXT
-T -MTEXT
TA TABLET
TB TABLE
TH THICKNESS
TI TILEMODE
TO TOOLBAR
TOL TOLERANCE
TOR TORUS
TP TOOLPALETTES
TR TRIM
TS TABLESTYLE
UC UCSMAN
UN UNITS
-UN -UNITS
UNI UNION
V VIEW
-V -VIEW
VP DDVPOINT
-VP VPOINT
VS VSCURRENT
VSM VISUALSTYLES
-VSM -VISUALSTYLES
W WBLOCK
-W -WBLOCK
WE WEDGE
X EXPLODE
XA XATTACH
XB XBIND
-XB -XBIND
XC XCLIP
XL XLINE
XR XREF
-XR -XREF
Z ZOOM
